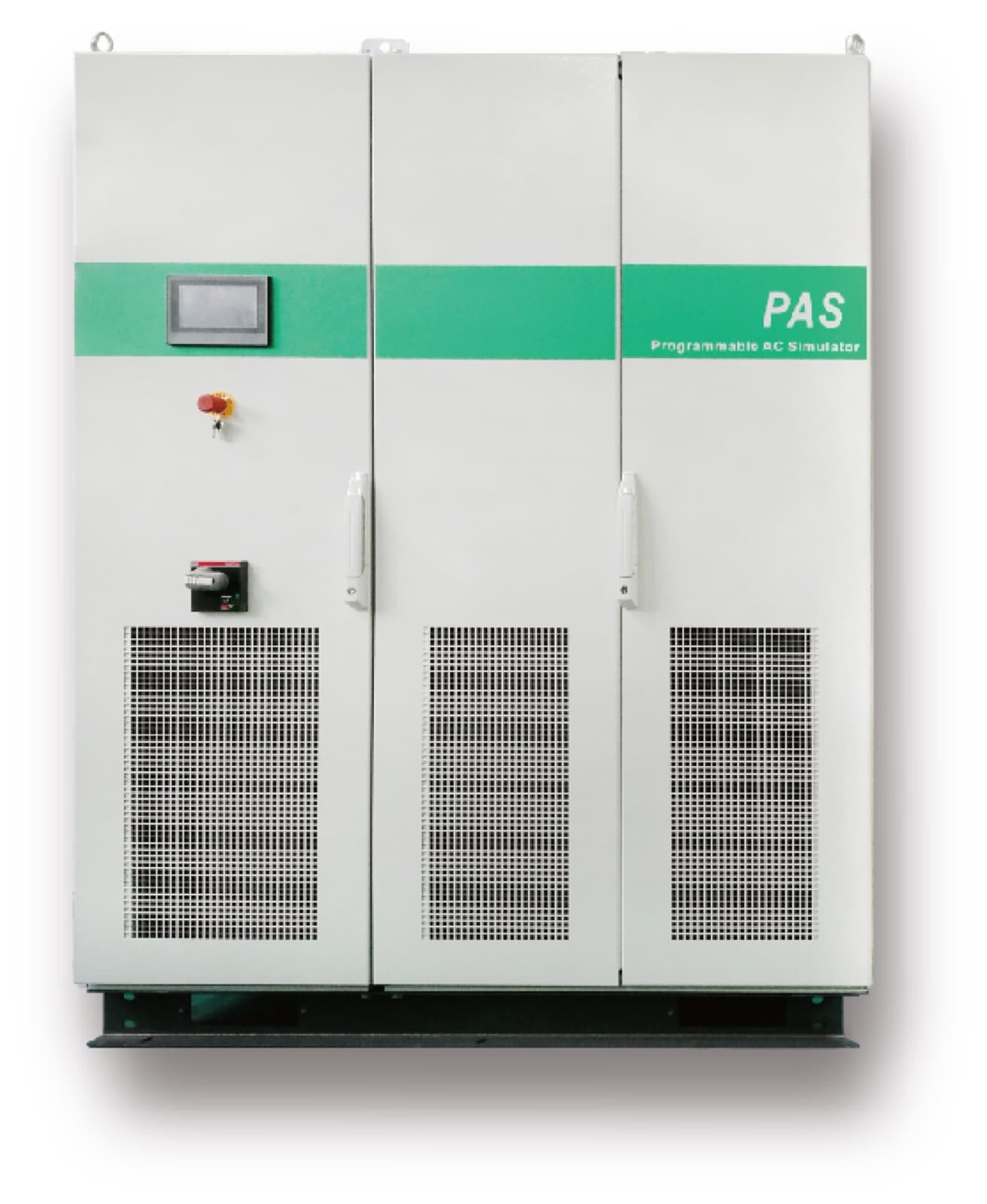

PAS-F regenerative AC source and grid simulator
Supplied and integratedA four-quadrant AC source large enough to stand in for the distribution network, which returns absorbed power to the supply instead of dissipating it.
- Envelope
- 45 kVA – 1.6 MVA · 0–300 V L-N · 45–65 Hz standard, 40–70 Hz optional · three-phase
- Manufactured by
- Preen
- Family
- PAS-F
- Availability in the UK
- Supplied and integrated
Why it matters here
This is the line G99 Issue 2 all but describes. Annex A.7.1.2.2 asks for type verification against a variable AC test supply, stepping voltage in increments of 0.5% or less, holding past the trip delay, then jumping in a single step so trip time can be measured. Doing that across Interface Protection, LFSM-O, LFSM-U, RoCoF, Fault Ride Through and Vector Shift is a bench that runs for days, and regeneration is what makes running it for days affordable.
Standards this line is bought for
- ENA EREC G99 Issue 2 — Grid-code type testing to G99 Issue 2
- ENA EREC G98 Issue 2 — G98 and the 16 A per phase threshold
Built into a delivered system, this appears as PAS-F regenerative AC source and grid simulator.
Get a figure against your requirement
Tell us the standard you are assessed against and the device under test. That is enough for an engineer to answer usefully rather than send a brochure.
